Home > SINOTRUK Spare Parts >

WG9232520010 Spring Bracket Rear

Product Categories

Jinan Automobile Sales Co., Ltd.

Contact Now

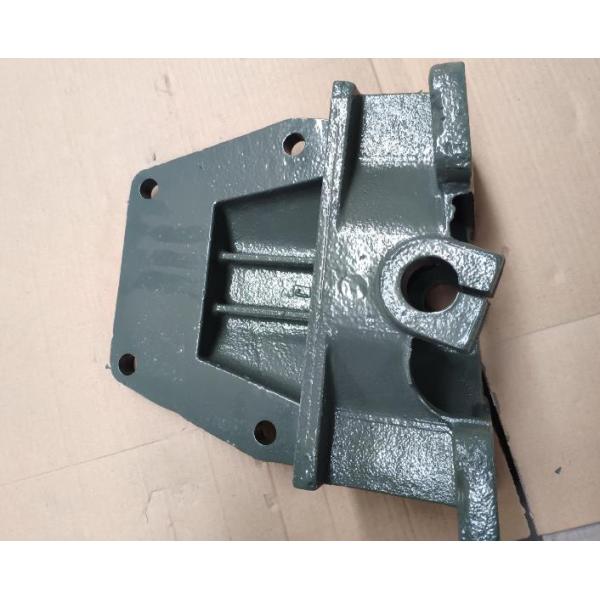

WG9232520010 Spring Bracket Rear

Name: WG9232520010 Spring Bracket Rear
Brand: SINOTRUK, CHNTC, HOWO, A7
Price: 1 USD

Wholesale WG9232520010 Spring Bracket Rear from china suppliers

Brand Name : SINOTRUK, CHNTC, HOWO, A7

Model Number : WG9232520010

Certification : ISO, SGS, EMARK

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000pcs/week

Delivery Time : 3 working days

Packaging Details : paper carton

Part No. : WG9232520010

Application : HOWO/A7 Dumper Truck, Tractor Truck, Cargo Truck

Brand : SINOTRUK, HOWO, CNHTC, A7

Description : Spring Bracket Rear,Left

Quality : Original

Origin : China

Contact Now

Sinotruk Spare Parts, WG9232520010, Spring Bracket Rear,Left, Howo, Cnhtc, A7, Sinotruk

WG9232520010 Spring Bracket Rear
WG9232520010, Spring Bracket Rear,Left, used on SINOTRUK ST16 and HC16 Rear Driving Axle, like HOWO tractor truck, tipper truck, cargo truck, etc, all can use this part.

WG9232520010 Spring Bracket Rear

D NO.	Part NO.	Part Name	Quantity
1	AZ9719520005	Spring bracket front	2
2	Q151B1665	Screw	6
3	Q151B1650	Screw	4
4	19003888459	Nut	10
5	WG9232520010	Spring bracket rear,left	1
5a	WG9232520011	Spring bracket rear,right	1
6	Q151B1650	Screw	8
8	190003888459	Lock nut	8
9	WG9114510510	Cross member	1
10	199100520025	Plate	8
13	Q151G1260	Screw	16
14	190003888457	Lock nut	16
15	WG9000520078	Bush	4
16	WG9100520034	Spring shackle front C	2
17	WG9100520065	Spring bolt	6
20	1680 520050	Washer	12
21	Q151C1270	Screw	2
22	Q151C1275	Screw	4
23	190003888457	Nut	6
24	190003963115	Grease nipple	2
26	190003963127	Grease nipple	4
27	WG80 520002	Plate	2
28	AZ9100520015	Spring clip	4
28/A	199014520238	Spring clip	4
29	1680 520056	Washer	8
30	190003888626	Lock nut	8
31	WG9323520010	Spring stop	2
32	1880 520019	Screw	2
33	Q340B10	Nut	2
34	Q40310	Spring washer	2
38	WG9100520042	Front spring C, right	1

WG9232520010 Spring Bracket Rear

Part No.	WG9232520010	Parts Description	Spring Bracket Rear,Left
Application	HOWO/A7 Series Trucks	Level	Original
Brand	SINOTRUK, HOWO, A7, Shacman, Weichai, CNHTC

WG9232520010 Spring Bracket Rear

If you need more spare parts information, pls check the following:

Clutch	1	WG9725160300	CLUTCH DISC
	2	AZ9725160100	CLUTCH COVER
	3	WG9921160200	CLUTCH DISC
	4	WG9921161100	CLUTCH COVER
	5	WG9725160510	CLUTCH BEARING
	6	WG9725230042	CLUTCH OPERATING CYLINDER
	7	WG9719230023	CLUTCH DRIVING CYLINDER

Transmission	1	AZ2203250003	DOUBLE H VALVE
	2	AZ2203250010	AIR LOCKING VALVE
	3	WG2229210040	GEAR SHIFT LEVEL
	4	WG2229210041	SUPPORT BAR
	7	WG2210100009	SYNCHRONIZATION RING
	10	WG2210100001	SUN GEAR
	13	WG2203100005	LOW-GEAR CONE HUB
	14	WG2222100003	RANGE GEAR CYLINDER
	15	WG2210100018	OUTPUT FLANGE
	16	WG2210100008	SYN.SLEEVE
	17	WG2203100006	HIGH-GEAR CORN HUB
	18	WG2229020001	SYN.PUSH PAD
	19	WG2210100004	PLANETARY GEAR
	20	WG2210100007	SYN.GEAR BASE

Axle	1	AZ9231320271	DIFF.HOUSING
	2	WG9231320151	BEVEL PINION
	4	AZ9128320014	Ф180 FLANGE
	7	99012340123	REAR WHEEL BOLT AND NUT
	8	199112340029	PLANETARY CARRIER
	11	WG9112340113	GASKET
	12	WG9112340114	GASKET
	13	WG9231342006	BRAKE GRUM
	14	AZ9231342070	BRAKE SHOE& LINING C
	15	AZ9231342068	REAR BRAKE LINING
	16	WG9200340068	REAR BRAKE LINING
	21	WG9112410009	FRONT HUB
	22	WG9100410104	FRONT WHEEL BOLT AND NUT
	26	AZ9112440001	BRAKE DRUM
	27	AZ9100440018	BRAKE SHOE
	28	WG9100440029	"T" BRAKE LINING 54°50‘
	29	WG9100440027	"T" BRAKE LINING 39°50’
	30	WG9231340068	RIVET

WG9232520010 Spring Bracket Rear
by 20'GP/40'GP/40'HQ/LCL/Bulk

199012320503

Product Tags:

WG9232520010

Howo Spring Bracket Rear

Sinotruk Spring Bracket Rear

WG9232520010 Spring Bracket Rear Images
